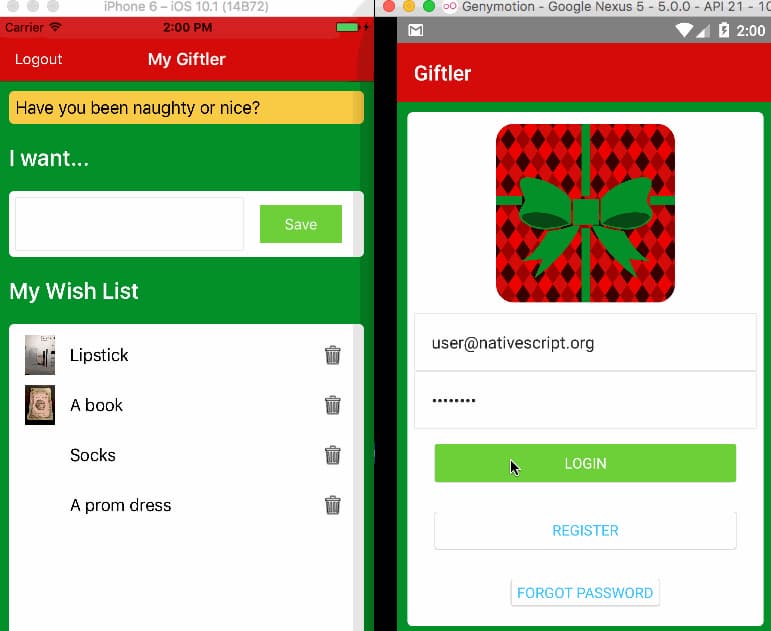

The powerful combination of NativeScript, Firebase, and Angular 2 can kickstart your app building into high gear, especially during the holidays when you find yourself confronted with the need to speed up your app development AND meet your family’s gift-giving needs! Just in time, I am happy to present to you (see what I did there 🎁) a demo of how to leverage Firebase in your Angular 2-powered NativeScript apps using several elements of Eddy Verbruggen’s famous NativeScript-Firebase plugin.

In this tutorial, I’m going to show you how to use four popular Firebase elements in your NativeScript app: Authentication with a login and registration routine; Database for data storage and real-time updates; Remote Config to make changes to an app remotely; and Storage for saving photos. To do this, I decided to rewrite my Giftler app, originally written in Ionic.
Before we get started, I encourage you to read through the documentation before starting in on your project, and make sure that a few prerequisites are in place:

• Ensure that NativeScript is installed on your local machine and that the CLI works as expected
• Configure your preferred IDE for NativeScript and Angular development. You’re going to need TypeScript, so ensure that your transpiling process is working. There are excellent NativeScript plugins available for Visual Studio, Visual Studio Code, and Jetbrains-compatible IDEs, among others. Visual Studio Code in particular has handy snippets that speed up development
• Log in to your Firebase account and find your console

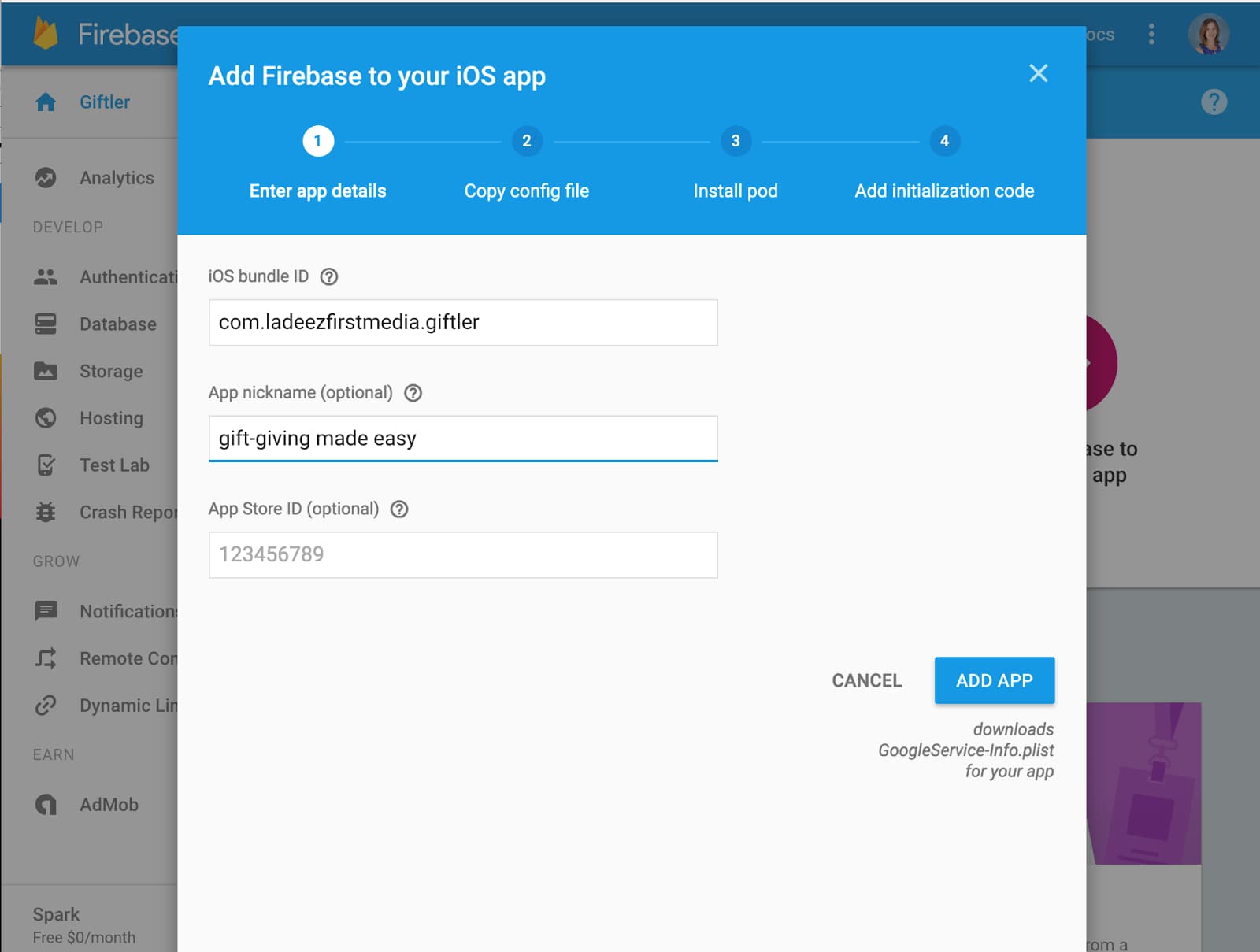

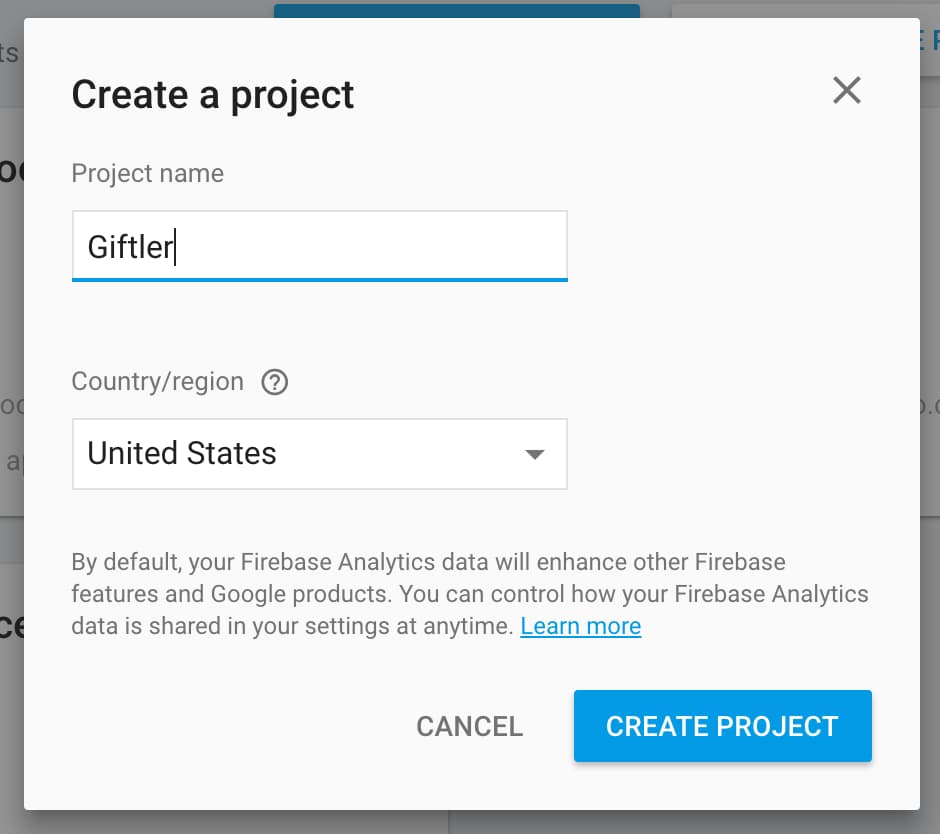

• Create a new project in the Firebase console. I named mine ‘Giftler’. Also create an iOS and Android app in the Firebase console. As part of this process you’ll download both a GoogleServices-Info.plist and google-services.json file. Make sure you note where you place those files, and you’ll need them in a minute.

Install the dependencies

I’ve built Giftler as an example of an authenticated NativeScript app where users can list the gifts that they would like to receive for the holidays, including photos and text descriptions. For the time being, this app does the following on iOS and Android:

• allows login and logout, registration, and a ‘forgot password’ routine
• lets users enter gift items into a list
• lets users delete items from a list
• lets users edit items in the list individually by adding descriptions and photos
• provides messaging from the Remote Config service in Firebase that can be quickly changed in the backend

Now, fork the Giftler source code, which is a complete and functional app. Once your app is cloned, replace the app’s current Firebase-oriented files that you downloaded when you created your app:

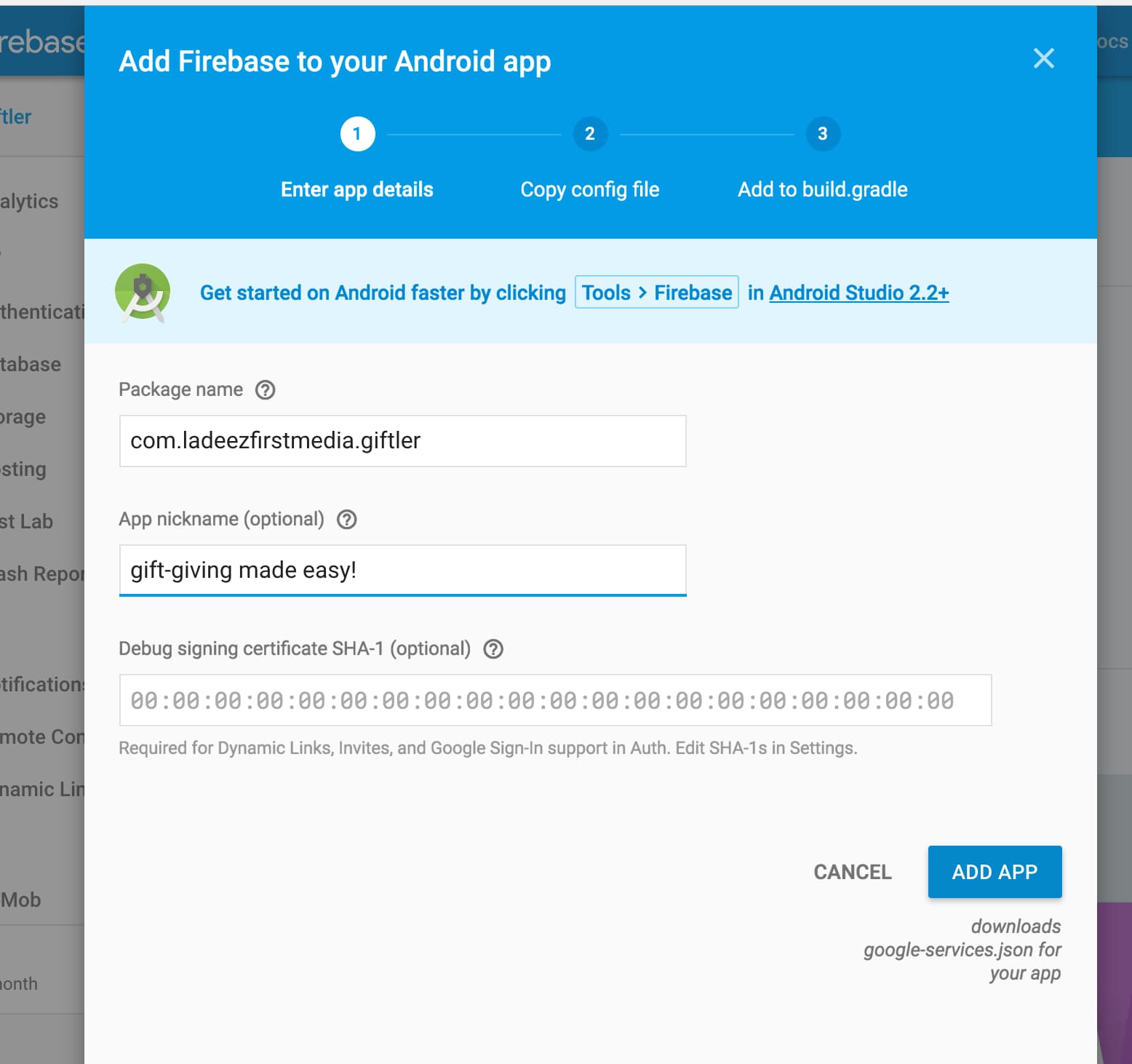

• In the /app/App_Resources/Android folder, put the google.services.json file that you downloaded from Firebase.
• Likewise, in /app/App_Resources/iOS folder, put the GoogleService-Info.plist file also downloaded from Firebase.

These files are necessary to initialize Firebase in your app and connect it to the relevant external services.

Now, let’s take a look at the package.json at the root of this app. It contains the plugins that you’ll use in this app. I want to draw your attention to the NativeScript-oriented plugins:

"nativescript-angular": "1.2.0",
"nativescript-camera": "^0.0.8",
"nativescript-iqkeyboardmanager": "^1.0.1",
"nativescript-plugin-firebase": "^3.8.4",
"nativescript-theme-core": "^1.0.2",

The NativeScript-Angular plugin is NativeScript’s integration of Angular. The Camera plugin makes managing the camera a bit easier. IQKeyboardManager is an iOS-specific plugin that handles the finicky keyboard on iOS. The Theme plugin is a great way to add default styles to your app without having to skin the app entirely yourself. And finally, the most important plugin in this app is the Firebase plugin.

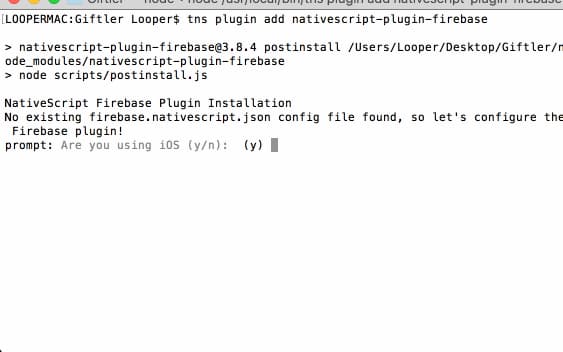

With the dependencies in place and the plugins ready to install, you can build your app to create your platforms folder with iOS and Android-specific code and initialize the Firebase plugin along with the rest of the npm-based plugins. Using the NativeScript CLI, navigate to the root of your cloned app and type tns run ios or tns run android. This will start the plugin building routines and, in particular, you’ll see the various parts of the Firebase plugin start to install. The install script that runs will prompt you to install several elements to integrate to the various Firebase services. We’re going to select everything except Messaging and social authentication for the moment. A great feature is that a firebase.nativescript.json file is installed at the root of the app, so if you need to install a new part of the plugin later, you can edit that file and reinstall the plugin.

At this point, if you run tns livesync ios --watch or tns livesync android --watch to see the app running on an emulator and watching for changes, you would see a the app running and ready to accept your new login. Before you initialize a login, however, ensure that Firebase handles Email/Password type logins by enabling this feature in the Firebase console in the Authentication tab:

Let’s take a look under the covers a bit to see what’s happening behind the scenes. Before you can log in to Firebase, you need to initialize the Firebase services that you installed. In app/main.ts, there are a few interesting bits.

// this import should be first in order to load some required settings (like
globals and reflect-metadata)
import { platformNativeScriptDynamic } from "nativescript-angular/platform";
import { AppModule } from "./app.module";
import { BackendService } from "./services/backend.service";

import firebase = require("nativescript-plugin-firebase");

firebase.init({
  //persist should be set to false as otherwise numbers aren't returned during
livesync
  persist: false,

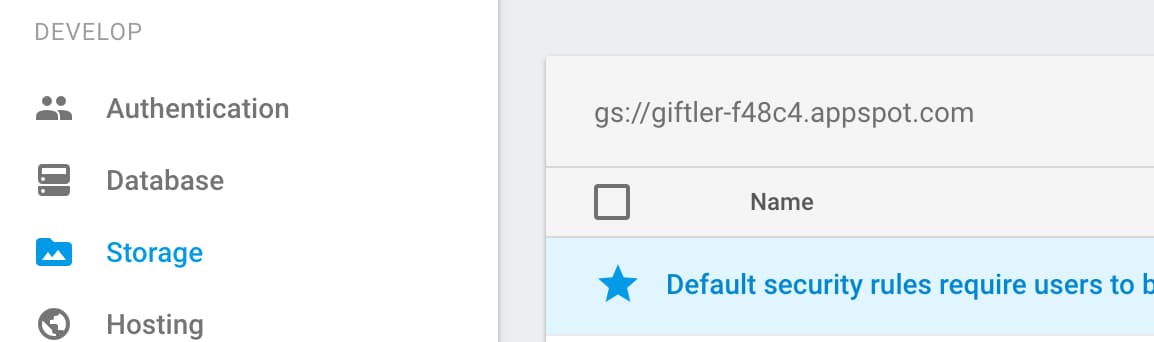

  storageBucket: 'gs://giftler-f48c4.appspot.com',
  onAuthStateChanged: (data: any) => {
    console.log(JSON.stringify(data))
    if (data.loggedIn) {
      BackendService.token = data.user.uid;
    }
    else {
      BackendService.token = "";
    }
  }
}).then(
  function (instance) {
    console.log("firebase.init done");
  },
  function (error) {
    console.log("firebase.init error: " + error);
  }
  );
platformNativeScriptDynamic().bootstrapModule(AppModule);

First, we import firebase from the plugin, and then we call .init(). Edit the storageBucket property to reflect the value in the Storage tab of your Firebase console:

Now your app is customized to your own Firebase account and you should be able to register a new user and login in the app. You can edit the user.email and password variables in app/login/login.component.ts file to change the default login credentials from user@nativescript.org to your own login and password if you like.

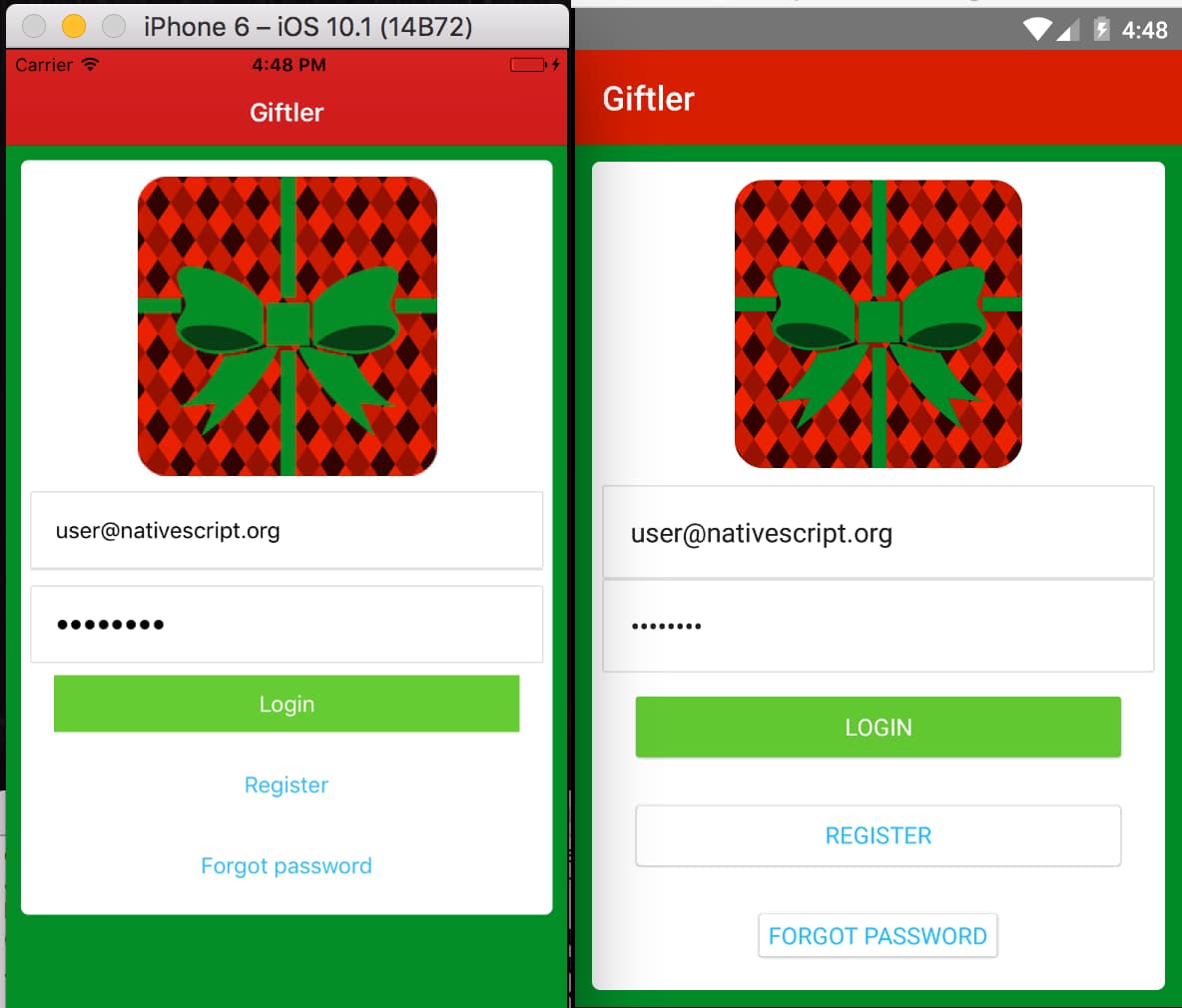

The iOS and Android login screens

Note: you should be able to emulate your app right away on iOS, using the Xcode simulator.  On Android, make sure that you select an Android SDK emulator image that supports Google Services, such as “Google APIs Intel x86 Atom System Image.” It can be hard to get the versions lined up perfectly, so pay close attention to the Firebase dependencies and version info.

Code Structure and Authentication

Angular 2 design patterns require that you modularize your code, so we will oblige by using the following code structure:

- login
  - login.component.ts
  - login.html
  - login.module.ts
  - login.routes.ts
—list
—list-detail
—models
- gift.model.ts
- user.model.ts
- index.ts
— services
  - backend.service.ts
  - firebase.service.ts
  - utils.service.ts
  - index.ts
- app.component.ts
- app.css
- app.module.ts
- app.routes.ts
- auth-guard.service.ts
- main.ts

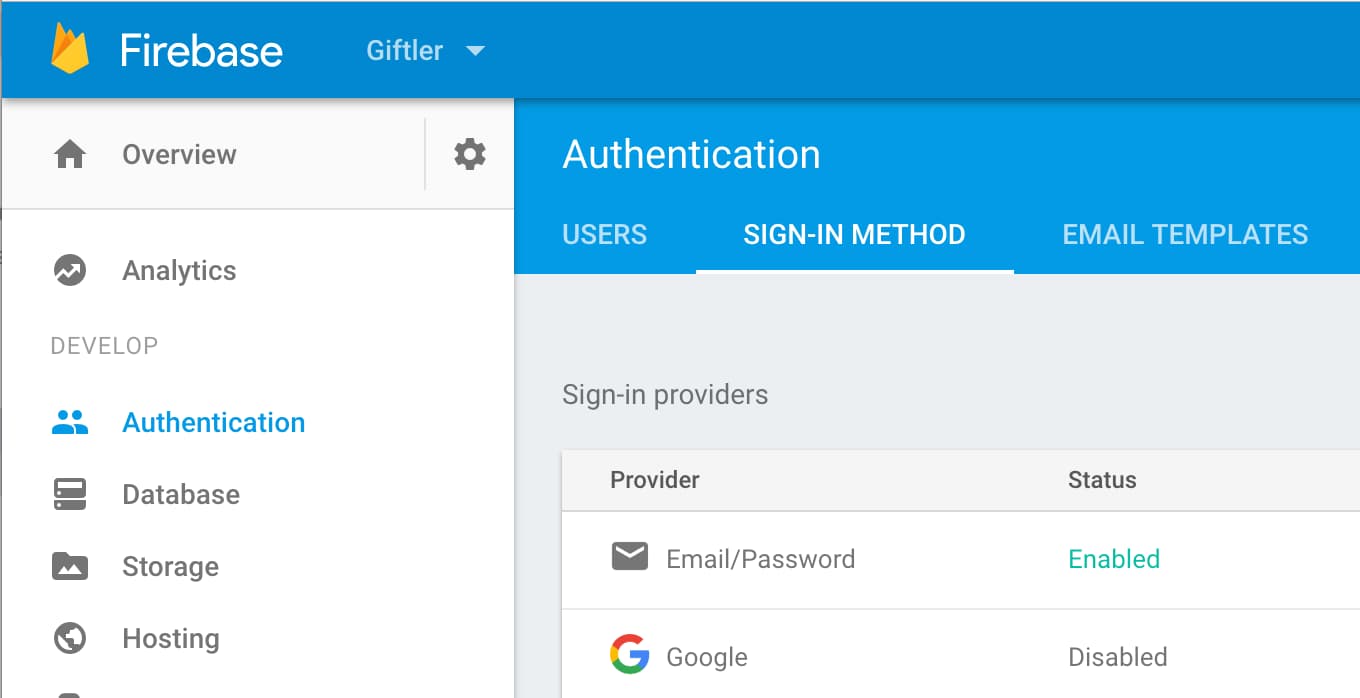

I want to draw your attention to the way Firebase authentication works with the Angular 2 auth-guard.service. When Firebase is initialized in your app in app/main.ts as we saw above, the onAuthStateChanged function is called:

onAuthStateChanged: (data: any) => {
  console.log(JSON.stringify(data))
  if (data.loggedIn) {
    BackendService.token = data.user.uid;
  }
  else {
    BackendService.token = "";
  }
}

When the app starts, check the console for the stringified data being returned by Firebase. If this user is flagged as being loggedIn, we will simply set a token which is the userId sent back by Firebase. We’ll use the NativeScript application settings module, which functions like localStorage, to keep this userId available and associate it to the data that we create. This token and the authentication tests that use it, managed in the app/services/backend.service.ts file, are made available to the app/auth-guard.service.ts file. The auth-guard file offers a neat way to manage logged-in and logged-out app state.

The AuthGuard class implements the CanActivate interface from the Angular Router module.

export class AuthGuard implements CanActivate {
  constructor(private router: Router) { }
  canActivate() {
    if (BackendService.isLoggedIn()) {
      return true;
    }
    else {
      this.router.navigate(["/login"]);
      return false;
    }
  }

Essentially, if the token is set during the above login routine, and the BackendService.isLoggedIn function returns true, then the app is allowed to navigate to the default route which is our wish list; otherwise, the user is sent back to login:

const listRoutes: Routes = [
  { path: "", component: ListComponent, canActivate: [AuthGuard] },
];

Now that you have initialized your Firebase-powered NativeScript app, let’s learn how to populate it with data and use Firebase’s amazing realtime power to watch for the database to be updated.

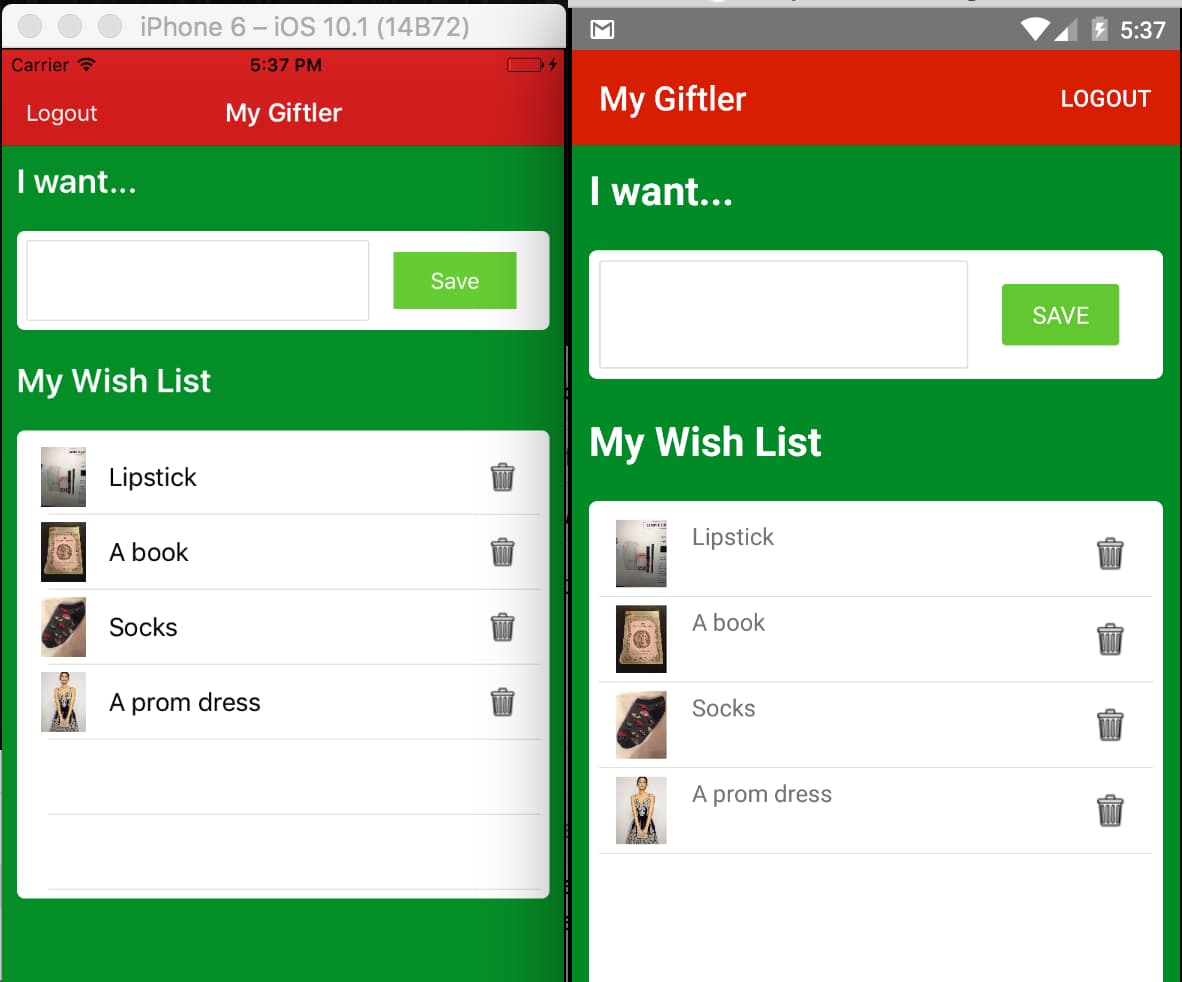

Making your list, checking it twice

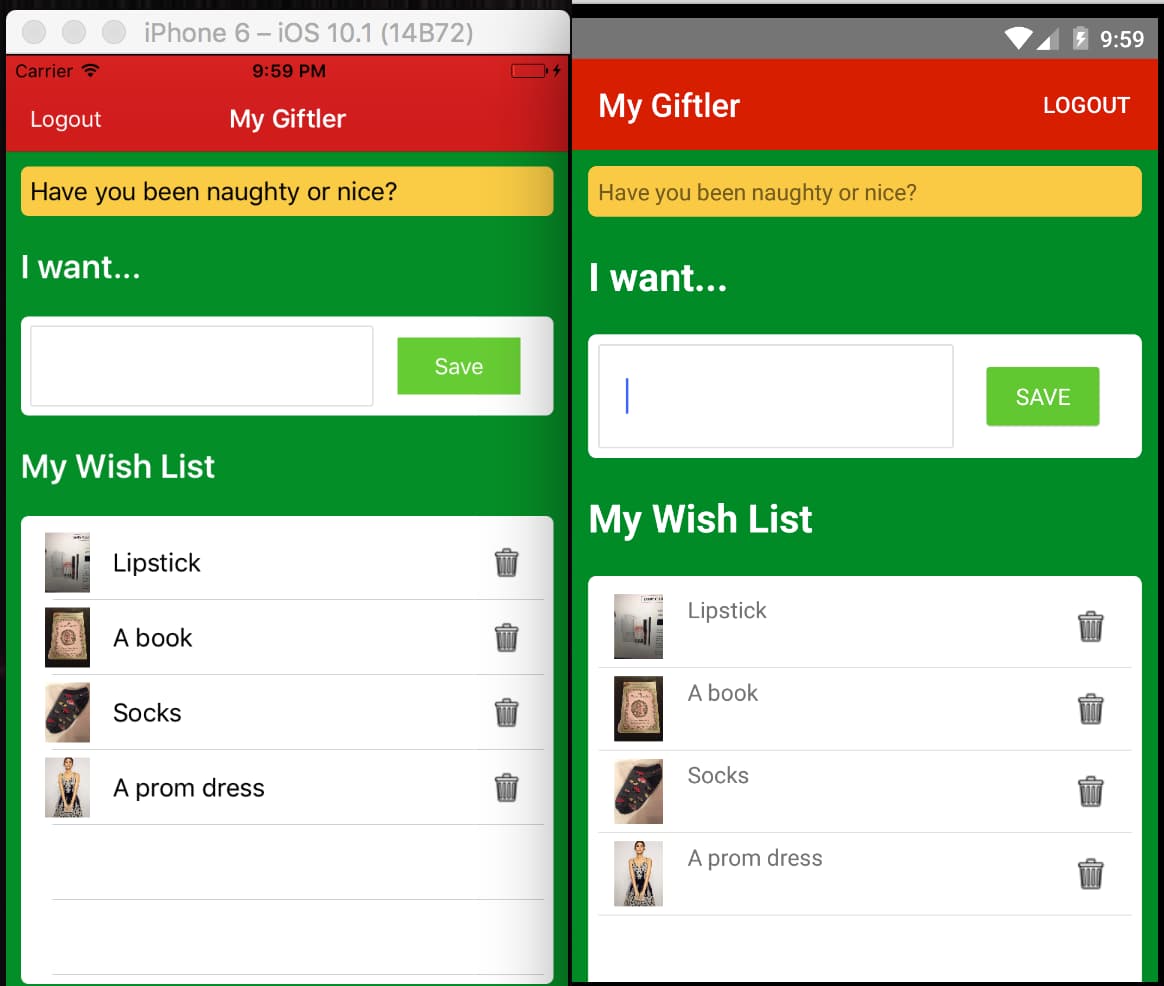

Starting in app/list/list.html, which is the basis of the wish list, you’ll see a textfield and a blank list. Go ahead, tell Santa what you want! The items are sent to the database and added to your list in realtime. Let’s see how this is done.
First, note that in app/list/list.component.ts, we set up an observable to hold the list of gifts:
public gifts$: Observable;
then, we populate that list from the database when the component is initialized:

ngOnInit(){
  this.gifts$ = this.firebaseService.getMyWishList();
}

It’s in the firebaseService file that things get interesting. Note the way that this function adds a listener and returns an RxJS observable, checking for changes on the Gifts collection in the Firebase database:

getMyWishList(): Observable {
  return new Observable((observer: any) => {
      let path = 'Gifts';
        let onValueEvent = (snapshot: any) => {
          this.ngZone.run(() => {
            let results = this.handleSnapshot(snapshot.value);
            console.log(JSON.stringify(results))
             observer.next(results);
          });
        };
        firebase.addValueEventListener(onValueEvent, `/${path}`);
    }).share();
}

The results of this query are handled in a handleSnapshot function below, which filters the data by user, populating an _allItems array:

handleSnapshot(data: any) {
    //empty array, then refill and filter
    this._allItems = [];
    if (data) {
      for (let id in data) {
        let result = (Object).assign({id: id}, data[id]);
        if(BackendService.token === result.UID){
          this._allItems.push(result);
        }
      }
      this.publishUpdates();
    }
    return this._allItems;
  }

And finally, publishUpdates() is called, which sorts the data by date so that newer items are shown first:

publishUpdates() {
    // here, we sort must emit a *new* value (immutability!)
    this._allItems.sort(function(a, b){
        if(a.date < b.date) return -1;
        if(a.date > b.date) return 1;
      return 0;
    })
    this.items.next([...this._allItems]);
  }

Once the data has populated your $gifts observable, you can edit and delete elements of it and it will be handled by the listener and the front end updated accordingly. Note that the onValueEvent function of getMyWishList method includes the use of ngZone which ensures that, although data updates occur asynchronously, the UI is updated accordingly. A good overview of ngZone in NativeScript apps can be found here.

Remotely Configured Messages from Beyond

Another cool piece of Firebase’s service includes “Remote Config”, a way to provide app updates from the Firebase backend. You can use Remote Config to toggle features on and off in your app, make UI changes, or send messages from Santa, which is what we’re going to do!

In app/list/list.html, you’ll find a message box:
<Label class="gold card" textWrap="true" [text]="message$ | async"></Label>

The message$ observable is built in much the same way as the data list; changes are picked up in this case each time the app is freshly initialized:

ngOnInit(){
  this.message$ = this.firebaseService.getMyMessage();
}

And the magic occurs in the service layer (app/services/firebase.service.ts ):

getMyMessage(): Observable{
    return new Observable((observer:any) => {
      firebase.getRemoteConfig({
      developerMode: false,
      cacheExpirationSeconds: 300,
      properties: [{
      key: "message",
      default: "Happy Holidays!"
    }]
  }).then(
        function (result) {
          console.log("Fetched at " + result.lastFetch + (result.throttled ? "
(throttled)" : ""));
          for (let entry in result.properties)
            {
              observer.next(result.properties[entry]);
            }
        }
    );
  }).share();
}

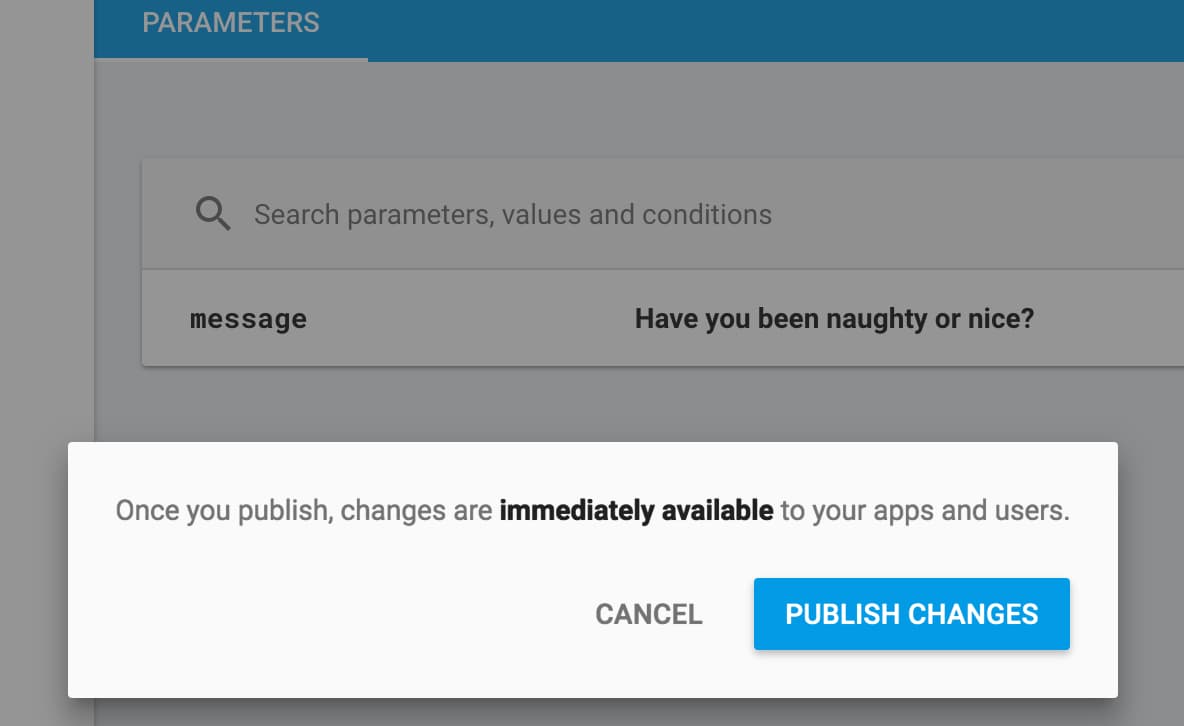

Publish new messages as often as you like!

Note: tinkering repeatedly with Remote Config may cause throttling of your Firebase instance, so develop with care

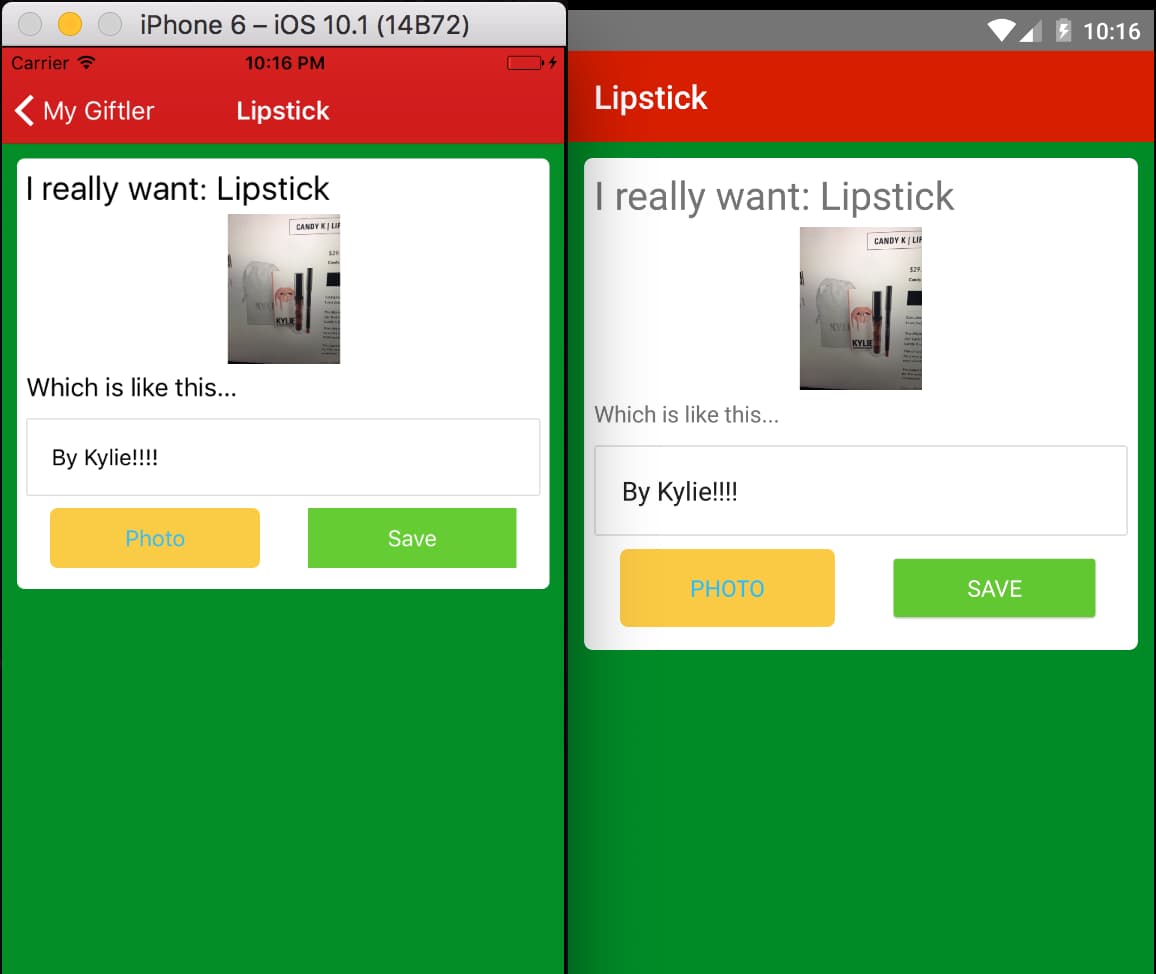

Take a picture!**

One of the more interesting parts of this project, I think, is the ability to take a picture of your present of choice and store it in Firebase Storage. I leveraged the Camera plugin, as mentioned above, which makes managing the hardware a little easier. To start, ensure that your app has access to the device camera by getting permissions set in the ngOnInit() method in app/list-detail/list-detail.component.ts:

ngOnInit() {
   camera.requestPermissions();
   // ...
}

A chain of events begins when the user clicks the ‘Photo’ button in the detail screen. First,

takePhoto() {
  let options = {
    width: 300,
    height: 300,
    keepAspectRatio: true,
    saveToGallery: true
  };
    camera.takePicture(options)
        .then(imageAsset => {
            imageSource.fromAsset(imageAsset).then(res => {
                this.image = res;
                //save the source image to a file, then send that file path to firebase
                this.saveToFile(this.image);
            })
        }).catch(function (err) {
            console.log("Error -> " + err.message);
        });
}

The camera takes a picture, and then that photo is stored as an imageAsset and displayed on the screen. The image is then named with a date stamp and saved to a file locally. That path is reserved for future use.

saveToFile(res){
  let imgsrc = res;
  this.imagePath = this.utilsService.documentsPath(`photo-${Date.now()}.png`);
  imgsrc.saveToFile(this.imagePath, enums.ImageFormat.png);
}

Once the ‘Save’ button is pressed, this image, via its local path, is sent to Firebase and saved in the storage module. Its full path in Firebase is returned to the app and stored in the /Gifts database collection:

editGift(id: string){
  if(this.image){
    //upload the file, then save all
    this.firebaseService.uploadFile(this.imagePath).then((uploadedFile: any) => {
    this.uploadedImageName = uploadedFile.name;
     //get downloadURL and store it as a full path;
    this.firebaseService.getDownloadUrl(this.uploadedImageName).then((downloadUrl:
    string) => {
    this.firebaseService.editGift(id,this.description,downloadUrl).then((result:any) => {
        alert(result)
        }, (error: any) => {
            alert(error);
        });
      })
    }, (error: any) => {
      alert('File upload error: ' + error);
    });
  }
  else {
    //just edit the description
    this.firebaseService.editDescription(id,this.description).then((result:any) => {
        alert(result)
    }, (error: any) => {
        alert(error);
    });
  }
}

This chain of events seems complicated, but it boils down to a few lines in the Firebase service file:

uploadFile(localPath: string, file?: any): Promise {
  let filename = this.utils.getFilename(localPath);
  let remotePath = `${filename}`;
  return firebase.uploadFile({
    remoteFullPath: remotePath,
    localFullPath: localPath,
    onProgress: function(status) {
      console.log("Uploaded fraction: " + status.fractionCompleted);
      console.log("Percentage complete: " + status.percentageCompleted);
    }
  });
}
getDownloadUrl(remoteFilePath: string): Promise {
  return firebase.getDownloadUrl({
    remoteFullPath: remoteFilePath})
     .then(
       function (url:string) {
         return url;
      },
      function (errorMessage:any) {
        console.log(errorMessage);
      });
}

editGift(id:string, description: string, imagepath: string) {
  this.publishUpdates();
  return firebase.update("/Gifts/"+id+"", {
    description: description,
    imagepath: imagepath
  }).then(
    function (result:any) {
      return 'You have successfully edited this gift!';
    },
    function (errorMessage:any) {
      console.log(errorMessage);
  });
}

The end result is a nice way to capture both photos and descriptions of the gifts for your wish list. No more excuses that Santa didn’t know exactly WHICH Kylie Eyeliner to buy. By combining the power of NativeScript and Angular, you can create a native iOS and Android app in a matter of minutes. By adding Firebase you have a powerful way of storing your app’s users, images and data, and a way of updating that data in real-time across devices. Cool, huh? It looks like this:

We are well on our way to create a solid wishlist management app! It remains to figure out the best way to inform Santa of our wishes - a Mailgun email integration or using push notifications would be the obvious next route. In the meantime, best wishes for a wonderful holiday season, and I hope you have a great time creating awesome NativeScript apps using Firebase!

Want to learn more about NativeScript? Visit http://www.nativescript.org. If you need help, join the NativeScript Slack channel here.
